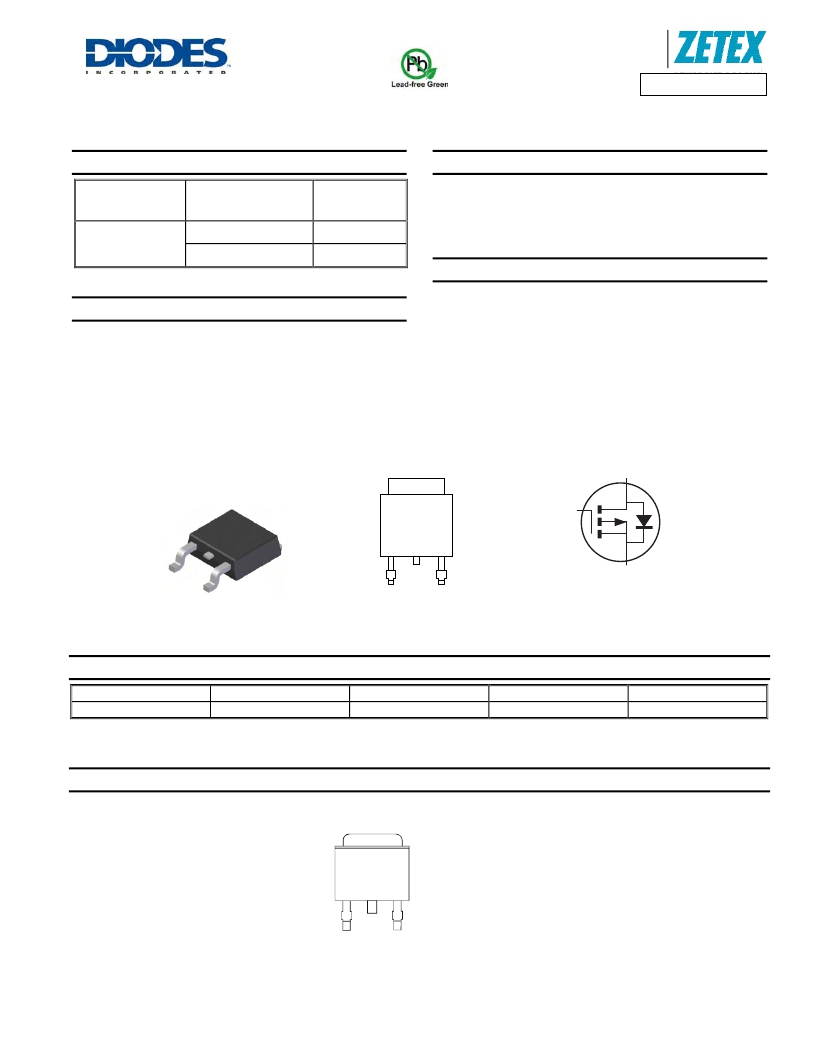

ZXMP6A17K
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Please click here to visit our online spice models database.
Product Summary
Features and Benefits
V (BR)DSS
R DS(on)
I D
T A = 25 ° C
?
?
?
Low on-resistance
Fast switching speed
“Green” component and RoHS compliant (Note 1)
125m Ω @ V GS = -10V
-6.6A
-60V
190m Ω @ V GS = -4.5V
-5.3A
Mechanical Data
?
Case: TO252-3L
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R DS(on) ) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
?
?
?
?
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals Connections: See Diagram
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
?
?
?
Backlighting
DC-DC Converters
Power management functions
D
?
Weight: 0.33 grams (approximate)
D
G
G
D
S
S
Top View
Ordering Information
(Note 1)
Pin Out -Top View
Equivalent Circuit
Product
ZXMP6A17KTC
Marking
See Below
Reel size (inches)
13
Tape width (mm)
16
Quantity per reel
2,500
Note:
1. Diodes, Inc. defines “Green” products as those which are Eu RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information
ZXMP
6A17
YYWW
ZXMP = Product Type Marking Code, Line 1
6A17 = Product Type Marking Code, Line 2
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
ZXMP6A17K
Document Revision: 2
1 of 8
www.diodes.com
July 2009
? Diodes Incorporated
